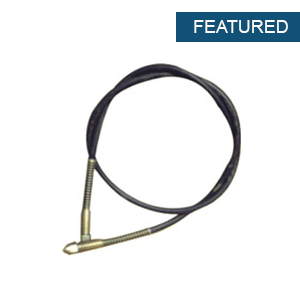

FLEXIBLE HIGH PRESSURE RUBBER HOSES

For connecting VANKOS HAND PUMP to a VANKOS HYDRAULIC REMOTE CONTROL unit. Light ,flexible ,rubber hose with spring guard reinforced with fabric/ wire braids for extra strength. Swivel end couplings at the both ends.

Length -0.5 M to 20 m, End coupling-M 18*1.5(F),Working Pressure up to 700 kg/cm2,Normal Bore 6.5MM Vankos Standard Hose : HYHE-2(2M long, m 18*1.5 female). Hose (ID) and (OD) will depend upon the working pressure & application.

Available on request

Hose working pressure up to 1000 KG/CM2. Polyurethane & Thermoplastic hose. Rigid (steel pipe) & semi-rigid (tubing ) fluid lines. Other Sizes and range also available on request.

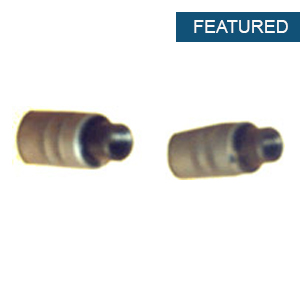

QUICK COUPLERS






QUICK CONNECT DISCONNECT COUPLER

Type : VQC-THREAD : M 18*1.5 WORKING PRESSURE UP TO 800 KG/CM2
Quick couplers are used for application where fast connection & disconnection of hydraulic line is required. These couplers when connected offer unrestricted flow passage. Design Ball Type-Double check valve-material steel seals - NITRILE.
(A MALE /FEMALE ADAPTOR MAY BE REQUIRED TO COMPLETE THE SET IN SOME EQUIPMENTS) (Other sizes and range available on request)

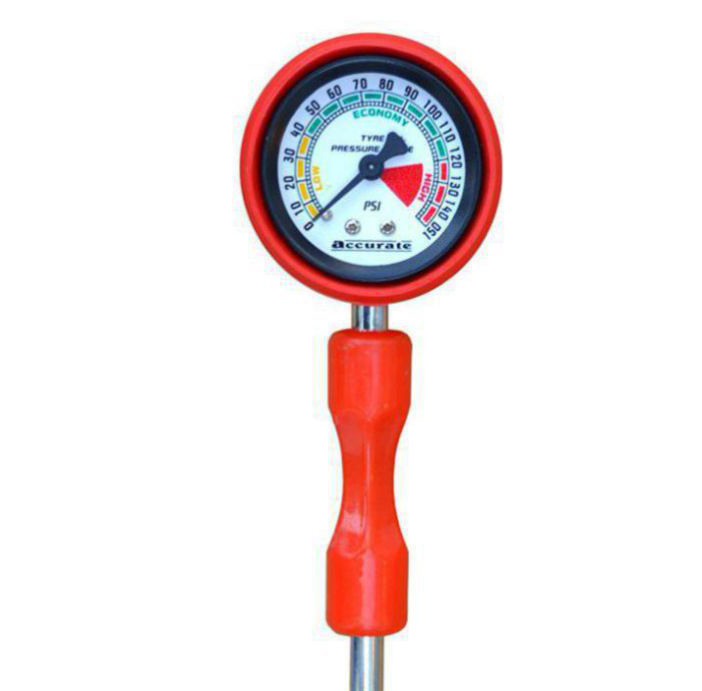

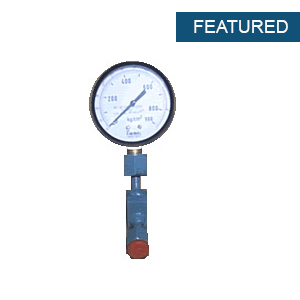

PRESSURE GAUGE / LOAD GAUGE

Pressure Gauge / Load Gauge permits reading of the pressure produced by the load. Used where a definite force is required or to establish the required force for an application.

CALIBRATED IN KG / CM2 (or Tonnes or Both)
TYPE
DIAL SIZE
RANGE KG / CM2
PG - 106
100
0 - 600
PG - 109
100
0 - 900
CALIBRATED IN KG / CM2 (or Tonnes or Both)

Pressure Gauge / Load Gauge permits reading of the pressure produced by the load. Used w0here a definite force is required or to establish the required force for an application.

ADAPTORS





END CONNECTION
M18 x 1.5 (M)
M24 x 1.5 (M)
LENGTH
39
39
HEX A / F
22
28

(VARIOUS TYPE OF FITTINGS AND ADAPTOR ON REQUEST)

PRESSURE GAUGE / LOAD GAUGE ADAPTORS




This Adaptor allows fast easy installation of the Gauges in the line.

OIL DISTRIBUTORS / MANIFOLD


It allows for easy connection of multiple Jacks/Cylinders to one pump (i.e. for simultaneous feeding of several work stations)

TYPE
NO. OF INLET PORTS
NO. OF OUT LET PORTS
ODS - 2
1
2
ODS - 3
1
3
ODS - 4
1
4
ODS - n
1
n


abc

Outlet port connection - M 18*1.5(M)

TYPE
NO. OF INLET PORTS
NO. OF OUT LET PORTS
OVA - 2
1
2
OVA - 3
1
3
OVA - 4
1
4
OVA - n
1
n

(Other sizes and range available on request)

If required pressure gauge / Load Gauge with adaptor can also be fitted in the outlet ports of ODS or OVA) (ODS + VV - 1 = OVA)

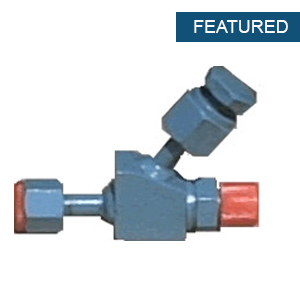

SHUT OFF VALVE


Outlet port connection - M 18*1.5(M)

These are used for isolating the oil flow in the required / desired direction . Valves are closed by closing the knobs in the clock wise direction.

Mounting : In- Line.

Type: VV-1, End coupling: M 18*1.5(M),
Optional:3/8" BSP (F),
Working Pressure up to : 800 KG/CM2.

SEALS

1. Increased Pressure Forces The O-Ring To Extrude 2. A Backup Ring Prevents Extrusion

A seal is basically required for closing the gap between the reciprocating movement of the shaft with stationery housing. It also retains the oil in the housing & prevents the leakage of the fluid. Generally seals used are of nitrile / neoprene. These are tough having good sealing properties & retains their shape over a wide range of temperature. All Vankos jacks have Teflon (ptfe) back up ring to prevent extrusion. (Viton & polyurethane seals are provided depending upon application.)



HYDRAULIC OIL

The main functions of a good hydraulic fluid is the transmission of fluid power & lubrication of the components of the fluid power system. we recommend : IOC Servo system - 32 / 46 / 57 & Bharat Petroleum - Hydrol 32 usable at temperature up to 90 degrees centigrade maximum. Viscosity index 95 minimum. Kinematic viscosity at 40 degree centigrade = 29.60 CST (control) the selection of the proper hydraulic fluid is important. As it has a direct bearing on the efficiency of the hydraulic system, on the cost of maintenance,& on the service life of the system's components. (equivalents : HPC - ENKLO 32,APAR LTD -Power Hydrol 32, Castrol - HYSP IN AWS 32/46, CHEMOLEUMS - ERATO 32 AW). Hydraulic oil should be replaced once every year.

All M 18 * 1.5 connections shall be M 24*1.5 for capacity of jacks / cylinders more than or equal to 75 T

Detail specification available on request for the following items

QUICKEST & EASIEST WAY TO START WORKING RIGHT AWAY- ASK FOR READY TO USE SETS, WHICH HAS OPTIMUM MATCH OF INDIVIDUAL COMPONENTS.

CUSTOMERS TO PROVIDE MAXIMUM POSSIBLE DETAILS FOR THEIR SPECIFIC REQUIREMENT

  • Detail specification available on request for the following items

  • Vankos can provide solutions to the special requirement of customers.
    Some Vankos Aircraft Jacks are available in special configuration not listed here.
    Give us your specification we shall designed it for you.

  • All dimensions are in mm unless otherwise stated.

  • Designs & dimensions are subject to alterations for the sake of improvement without notice
