HYDRAULIC CYLINDERS


Vankos offers a wide range of hydraulic cylinders for varied applications. Vankos with more than 40 years of rich experience in innovation and problem solving in manufacture of hydraulic jacks, material handling products, tools, etc. has started manufacture of hydraulic cylinders on a large scale. Our customers can always be assured that Vankos hydraulic cylinders is expert designed. It will perform superbly for the job it was designed for at all times.

We can provide following CYLINDER Types
  • Single Acting/Double Acting
  • Single/Multistage
  • Cushioned/Non Cushioned
Request a Quote
HYDRAULIC CYLINDERS

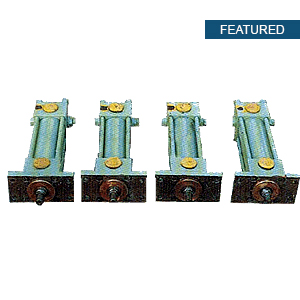

MOUNTING STYLE : FRONT FLANGE MOUNTING
MOUNTING STYLE : TRUNNION

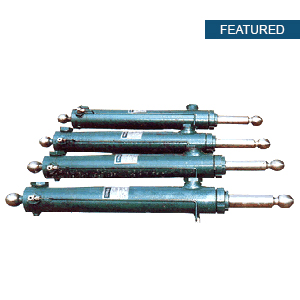

MOUNTING STYLE : BALL SOCKET
VANKOS MANUFACTURES HYDRAULIC CYLINDERS FOR

Earth moving and mobile equipments, machine tools, steel plants, material handling equipments, agriculture, lifting platforms, fork lift trucks, trailers, refuse disposal vehicles, farm tractors, defense, marine and rail applications, etc.and also for replacement market.

SEALS

Imported as well as indigenous seals are available. Advanced seal material and wide seal configurations for high temperature and abrasions and severe chemical conditions.

TYPES OF SEALS AVAILABLE

Rod, Piston, Wiper/Scraper, O-Rings, U-Cup Seals, Multi-Lip Seals, Chevron Packings etc.

MOUNTING STYLES

Various varieties as per customers requirement.

CYLINDERS CONFORMING TO

DIN, ISO, SAE, GOST, ISI, STANDARDS.

CONSTRUCTION FEATURES

Piston-rod-hard chrome plated and re-ground Cylinders-made from honed tubes and surface finish in microns.

ou are looking for LONG LIFE, SERVICE, ECONOMY AND A RELIABLE ENGINEERING SOLUTION, which is a tradition at Vankos, then come to Vankos for STANDARD as well as CUSTOM BUILT Cylinders.
QUESTIONNAIRE ON HYDRAULIC CYLINDERS

1 Type of cylinder-single/double acting
2 Single stage/multistage
3 Stroke required
4 Working pressure 5 Test pressure
6 Port size: Male: Female:
7 Closed length between end mounting
8 Bore dia
9 Piston rod dia
10 Working temperature

11 Monthly/Annual requirements
12 Working environment
13 End mounting style (please provide sketch/drawing)
14 a. Cushioned-fixed Cushioned/adjustable cushion b. Non-Cushioned
15 Seals: imported/indigenous
16 Type of fluid being used (hydraulic oil or any other oil)
17 Speed of a) extension and b) retraction
1Application area
19 Frequency of use
20 Any special requirement/detail

  • CUSTOMERS TO PROVIDE MAXIMUM POSSIBLE DETAILS FOR THEIR SPECIFIC REQUIREMENT ( In case of a tailor / custom made hydraulic Cylinders )
  • Vankos can provide solutions to the special requirement of customers. Some Vankos Aircraft Jacks are available in special configuration not listed here. Give us your specification we shall designed it for you.
  • All dimensions are in mm unless otherwise stated.
  • Designs & dimensions are subject to alterations for the sake of improvement without notice

    • Vankos is reputed for its excellence in the design, development, machining and manufacturing of low - cost precision high-efficiency sophisticated Hydraulic equipments since 1960.
