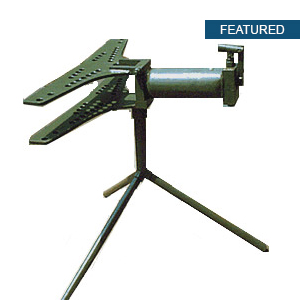

Based upon a proved and tested design for the bending of standard and High Pressure Pipes ' VANKOS' VPB, 1050, 1080 & 10100 incorporate many desirable and uptodate features. All models consists basically of a bending frame of immense strength, entirely constructed from rolled steel sections, bolted and welded where necessary, to provide a rigid yet transportable structure upon which are mounted the Hydraulic Power Unit and Bend Formers. Vankos Hydraulic Pipe Benders are capable of bending pipes as per is - 1239 ( PART-1) 1990. The Hydraulic Power Unit is a highly efficient powerful source of bending force developing 15, 30 and 50 tonne pressure, enough to bend the maximum size of tubes in the range with ease. The pump piston is made from high carbon steel, hardened and ground to precision micron finish. Hydraulic ram retraction is by spring, supplied with thick walled steel tripod for instant mounting at site or in shop ready for immediate use. All spares and service after sales guaranteed. Also made to order Special Purpose Hydraulic bending equipment with attached integral pumps of remote control pump unit-manual or motorised. Bending capacity upto 100 MM ( "4" ) NB.
The Vankos hydraulic Pipe Bending Motorised incorporates the time approved tested and highly successful technical features found in the famous range of VPB Manual Pipe Benders. The VMPB provides a completely versatile but highly portable range of tube bending machines for long operating life ant trouble free service on sales or in the workshop. Vankos Motorised Pipe Benders are capable of bending pipes as per IS : 1239 (Part-1) 1990. VMPB 1050 (upto 2" Models) and VMPB - 1080 (upto 3" Models) have single acting spring loaded self retracting rams. VMPB 10100 (upto 4" Models) double acting hydraulic ram with hydraulic return a mere shifting of directional valve lever from forward to reverse positions ensures a rapid retraction with instant ejection of the bent tube from the former. FAST UNIFORM BENDS UPTO 900 IN ONE SETTING 75% SAVING IN TIME AND LABOUR COST. Repeated test trails and demonstration have convinced many a hesitant customer that the VMPB with a fast setup time is a real time saver with smooth easy effortless one shot bending action-its provided to be four time faster than any other comparable power bender for e.g normal time to bend 80 mm (3") Tube to 900 in 100 seconds VMPB does it in 25 seconds. 1800 bend can be achieved in 2/3 stages by rotating/shifting pipe as per requirement. All Steel solid heavy duty frame construction designed to operate in all kinds of working conditions - positively high output rate with high efficiency operation factor or - fully protected against overload the motorised pump unit delivers a steady flow of high pressure power with simple push button starter control.
QUICKEST & EASIEST WAY TO START WORKING RIGHT AWAY - ASK FOR READY TO USE SETS, WHICH HAS OPTIMUM MATCH OF INDIVIDUAL COMPONENTS.
CUSTOMERS TO PROVIDE MAXIMUM POSSIBLE DETAILS FOR THEIR SPECIFIC REQUIREMENT
